Week 6 model

I added a second level/mezzanine level to my model, which also meant I added a staircase. I worked with paper at a 1:20 scale. I definitely prefer working with cardboard as it is more sturdy, though want to save that material for a later more detailed model.

Some of the details I didn't think out properly and meant that there were gaps in the paper. I also wasn't sure If I should somehow make one large window across both the top and bottom level, or leave it as two seperate windows.

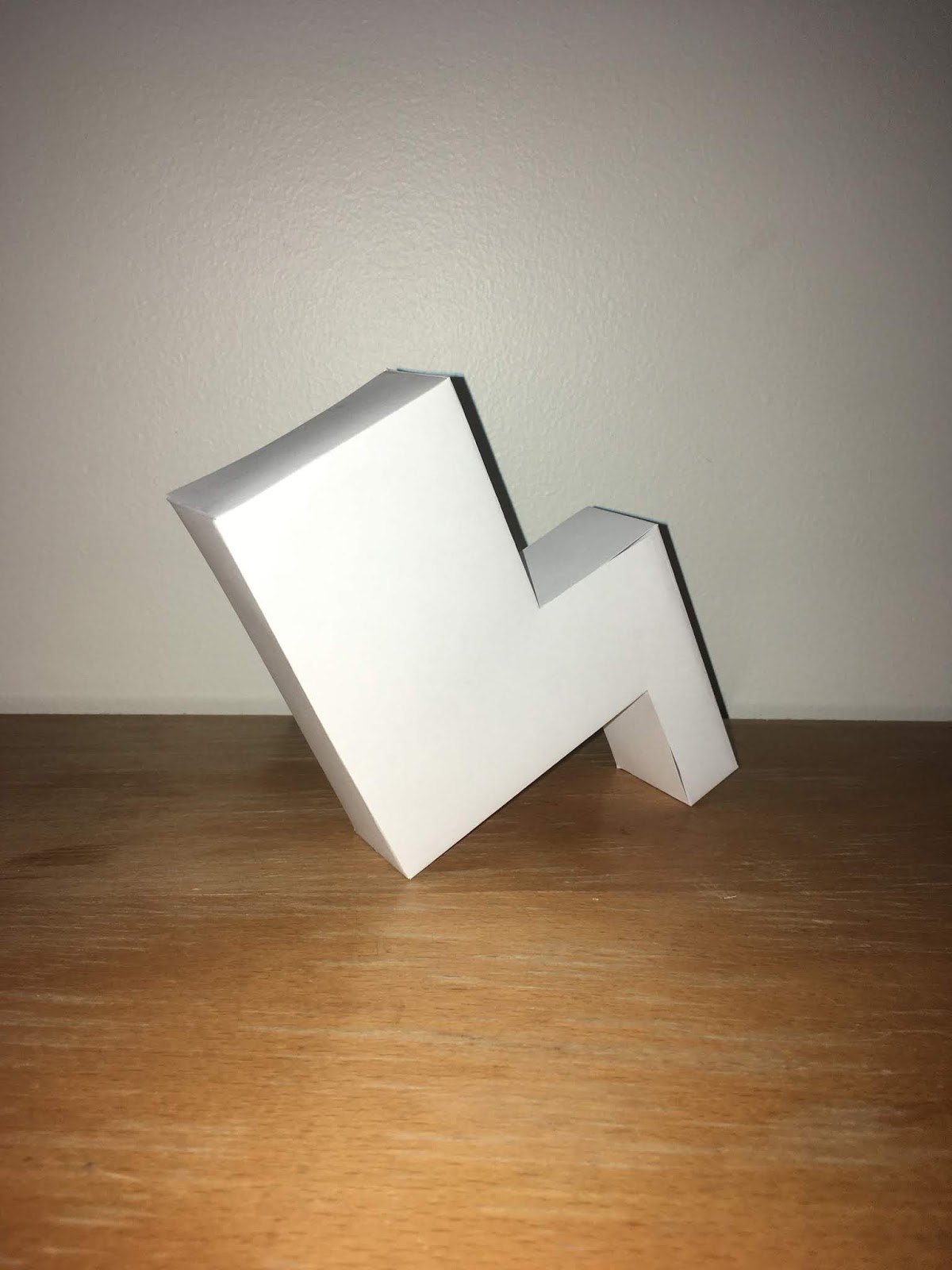

I also made my Fusion360 transitional space model out of paper.

Week 5 Model Making

first model 1:10 - paper

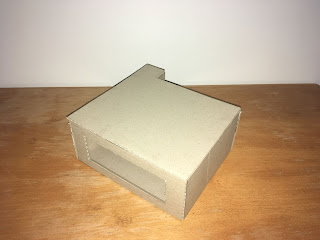

second model 1:20 - cardboard

some of the folding techniques

I preferred making the model out of thick cardboard as it kept its shape better. I can imagine when working with more curved and organic shapes that paper would come in handy, but for more rectilinear shapes, the sturdiness of the cardboard made it a lot easier.

Final Project 1

On Site Photographs - 26/2

lines

size/scale

contrast

repetition

colour

shapes

direction of lines

texture

proximity

space

alignment

balance

Initial sketches and photos

Our area of UNSW was one of the Student Accommodation Buildings

I really enjoyed the style of contour drawing.

The main pathway through the middle of the building.

sketch practice

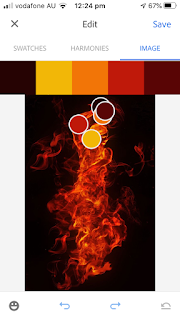

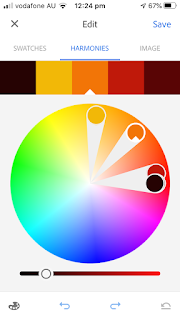

Data Set Colours

My data set was Students in Faculties.

PASSION

OCCUPATION

DIVERSITY
